PTEE-P series ABS Inline Duct Blowers have high airflow
performance and include two-layer sound absorbent cotton and
sound wave holes to reduce noise.
Each backward-curved centrifugal impeller is made of PA66(FR)
material and the external housing and connection box are made
of ABS(FR). The fans can operate from -20℃ to 60℃ and
include thermal protection and dual ball bearings for long-life
operation up to 50,000 hours.
The external rotor motor has a low temperature rise and is
equipped with automatic reset thermal overload protection.
Insulation Class:F.
Protection Class:IP67.
Unit of Measure

Specifications

Voltage

 N/A 220 to 240 V

Frequency

 N/A 50 Hz

Current

 N/A 0.30 A

Power

 N/A 45 Watts

Speed

 N/A 2700 rpm

Airflow

 N/A 150 cfm255 m³/h

Pressure

 N/A 1.41 inH2O0.75 mmAq352 Pa

Dimensions

A

 N/A 3.62 in92 mm

B

 N/A 11.89 in302 mm

C

 N/A 0.24 in6 mm

D

 N/A 3.82 in97 mm

E

 N/A 0.98 in25 mm

F

 N/A 6.54 in166 mm

G

 N/A 9.55 in242.5 mm

L

 N/A 12.99 in330 mm

W

 N/A 9.94 in252.5 mm

H

 N/A 13.07 in332 mm

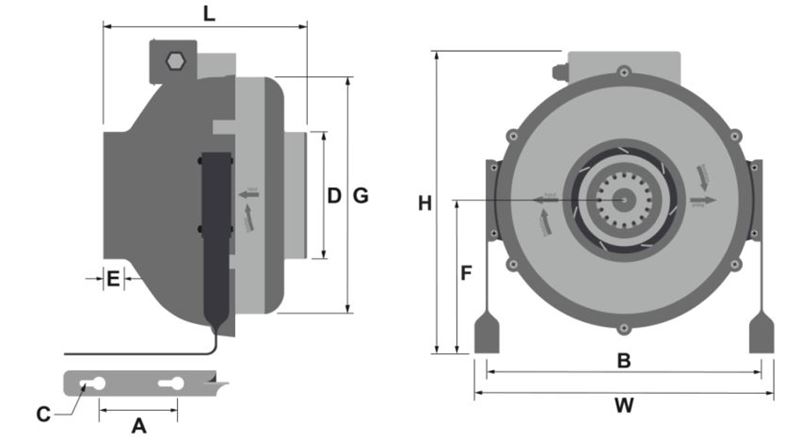

Dimensional Drawing

<span data-measure='general'><img src="/Asset/PTEE-P_dim.jpg"></img><br/>PTEE-P SERIES - ABS Inline Duct Blowers_dim<br/></span>

Applications

Applications

 N/A HVAC
Fresh Air Systems
Air Purification
Communication Equipment
