PTA series Axial Inline Duct Fans have high airflow performance
and include an innovative aluminum structure for low noise and
long-term reliability.
Each housing is made of high-endurance metal and the axial
fans include an aluminum housing with sizes in 120x120x38mm
or 172x150x51mm.
The fans can operate from -20℃ to 70℃ and also include
thermal protection and can be configured with sleeve or dual
ball bearings for long-life operation up to 50,000 hours.
Insulation Class:F.
Protection Class:IP44.
Unit of Measure

Specifications

Voltage

 N/A 220 to 240 V

Frequency

 N/A 50 Hz

Current

 N/A 0.12 A

Power

 N/A 18.0 Watts

Speed

 N/A 2700 rpm

Airflow

 N/A 70 cfm119 m³/h

Noise

 N/A 40.0 dBA

Weight

 N/A 0.75 kg

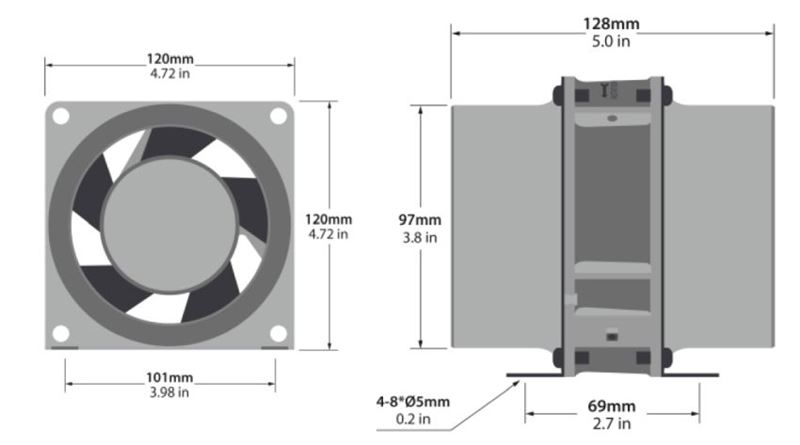

Dimensional Drawing

<span data-measure='general'><img src="/Asset/PTA12038B2_dim.jpg"></img><br/>PTA SERIES - Axial Inline Duct Fans PTA12038B2_dim<br/></span>

Applications

Applications

 N/A HVAC
Fresh Air Systems
Air Purification
Communication Equipment
