Catalog
24V
18.4~33.8 CFM (0.52~0.96 m3/min)
Ball Bearings
Lead Wires: UL1332 (+) Red; (-) Black, AWG 18
Operating Temperature: -40ºC ~ +65ºC
Operating Life: 10,000 hours at 25ºC
Tachometer (Frequency Generator)
PWM Speed Control
CE, RoHS
18.4~33.8 CFM (0.52~0.96 m3/min)
Ball Bearings
Lead Wires: UL1332 (+) Red; (-) Black, AWG 18
Operating Temperature: -40ºC ~ +65ºC
Operating Life: 10,000 hours at 25ºC
Tachometer (Frequency Generator)
PWM Speed Control
CE, RoHS
Unit of Measure
Specifications
Voltage |
N/A 24 V |
Range |
N/A 18 to 26.5 V |
Current |
N/A 8.5 A |
Power |
N/A 204.0 Watts |
Speed |
N/A 44000 rpm |

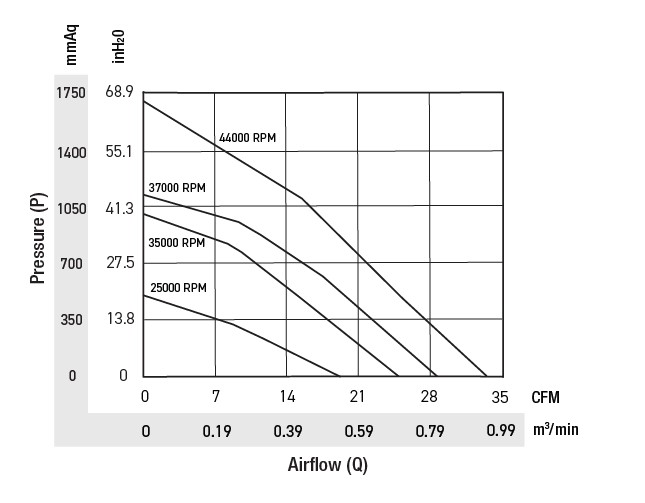

Airflow (Q) |
N/A 33.80 cfm0.957 m³/h |
Pressure (P) |
N/A 66.2 inH2O1681 mmAq |
Noise |
N/A 84.3 dBA |
