Catalog
12V, 24V
17.8 CFM (0.51 m3/min)
Ball Bearings
Lead Wires: UL1007 (+) Red; (-) Black, AWG 20
Operating Temperature: -40ºC ~ +65ºC
Operating Life: 10,000 hours at 25ºC
Tachometer (Frequency Generator)
PWM Speed Control
CE, RoHS
17.8 CFM (0.51 m3/min)
Ball Bearings
Lead Wires: UL1007 (+) Red; (-) Black, AWG 20
Operating Temperature: -40ºC ~ +65ºC
Operating Life: 10,000 hours at 25ºC
Tachometer (Frequency Generator)
PWM Speed Control
CE, RoHS
Unit of Measure
Specifications
Voltage |
N/A 24 V |
Range |
N/A 18 to 26.5 V |
Current |
N/A 3.0 A |
Power |
N/A 72 Watts |
Speed |
N/A 38000 rpm |

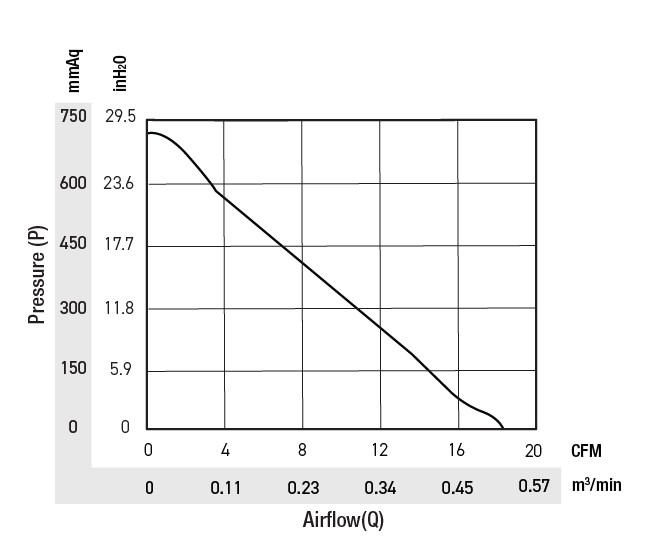

Airflow (Q) |
N/A 17.84 cfm0.505 m³/h |
Pressure (P) |
N/A 28.39 inH2O721 mmAq |
Noise |
N/A 71.7 dBA |
