12V, 24V
13.0~37.3 CFM (0.37~1.06 m3/min)
Ball Bearings
Lead Wires: UL1332 (+) Red; (-) Black, AWG 18
Operating Temperature: -40ºC ~ +65ºC
Operating Life: 10,000 hours at 25ºC
Tachometer (Frequency Generator)
PWM Speed Control
CE, RoHS
13.0~37.3 CFM (0.37~1.06 m3/min)
Ball Bearings
Lead Wires: UL1332 (+) Red; (-) Black, AWG 18
Operating Temperature: -40ºC ~ +65ºC
Operating Life: 10,000 hours at 25ºC
Tachometer (Frequency Generator)
PWM Speed Control
CE, RoHS
Unit of Measure
Specifications
Voltage |
N/A 12 V |
Range |
N/A 7.5 to 13.5 V |
Current |
N/A 12.40 A |
Power |
N/A 148.8 Watts |
Speed |
N/A 15000 rpm |

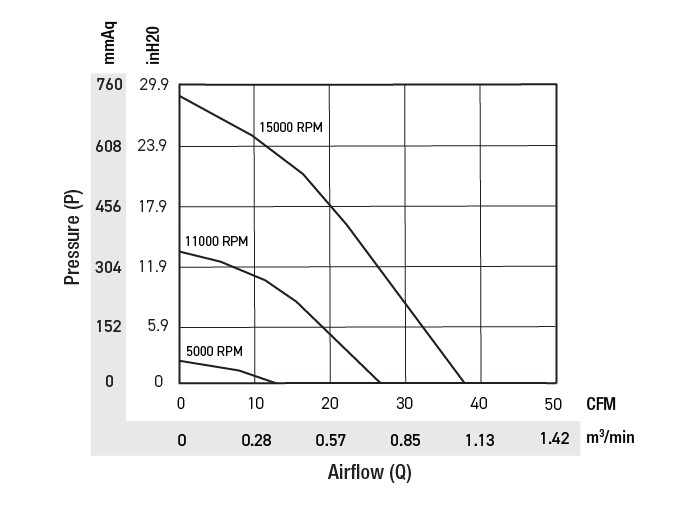

Airflow (Q) |
N/A 37.3 cfm1.056 m³/h |
Pressure (P) |
N/A 29.61 inH2O752.0 mmAq |
Noise |
N/A 71.9 dBA |
